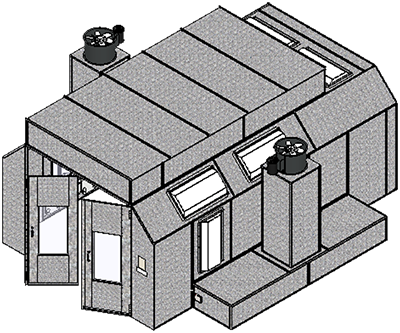

Heated Side Downdraft Paint Booth

Heated Side Downdraft Paint Booth

SKU: SDD-1000GH Click Here for Specifications & Optional Features

Heated Side Downdraft Paint Booth

SKU: SDD-1000GH Click Here for Specifications & Optional Features

Shipping Weight: 5800.00 pounds

Product Description

The heated side downdraft paint booth draws fresh air from outside and is heated after passing through filters in the air make up unit. The filtered air is pushed down and then exhausted on each side away from the center of the booth to the exhaust filters at floor level along the paint booth sides. This booth is also available with drive through doors as an option.
  • 14' W x 9' H x 22'9" L - interior dimensions
  • 21'7" W x 11'3" H x 23' L - exterior dimensions
  • 10' W x 9' H entrance doors
  • 2-24" tube axial fans & 2- 3-phase - 2 hp motors with belts, pulleys & sheave - 17,980 CFM
  • Air tight 18 gauge galvanized steel construction
  • Clear tempered glass in front and personnel doors
  • 10-48" 4 tube fluorescent light fixtures
  • Intake/exhaust filters/filter grids - 20" x 20"
  • All hardware, fasteners, sealants
  • Draft gauge
  • Assembles in 2-3 days
  • UL listed components
  • Sure-Cure 14k CFM 1.2mil BTU
Optional Add-on Features*:
  • Two (2) 24" x 16' exhaust packages
  • Single phase motor: $160
  • Additional light fixture with glass: $265
  • Additional 24" length: $560
  • Additional 44" length: $770
  • Additional 2' height: $670
  • 9' x 10' drive-through doors: $1,530
  • White Powder Coated Finish (inside & out)
*Pricing may vary. Please call for complete add-on feature pricing.
