ETL-Listed Cross Flow Paint Booth

ETL-Listed Cross Flow Paint Booth

SKU: CF-1000ETL Click Here for Specifications & Optional Features

ETL-Listed Cross Flow Paint Booth

SKU: CF-1000ETL Click Here for Specifications & Optional Features

Shipping Weight: 3340.00 pounds

Product Description

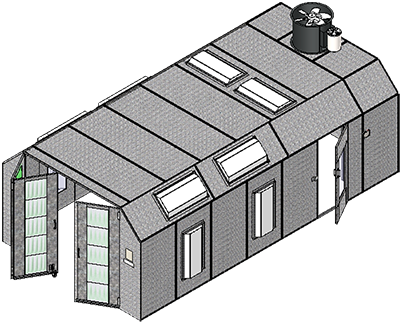

Our ETL-Listed Cross Flow Paint Booth draws fresh air through filters in the drive-in doors. This clean filtered air is pulled through the booth and then exhausts through a filter system on the other end. The CF-1000 model comes standard with a "Horseshoe" style plenum arrangement verses a solid back wall plenum. This type of exhaust chamber gives greater inside working space while making efficient use of shop space. This also enables the addition of drive through doors to be added. The filtered exhaust air is pulled through the exhaust plenum and discharged straight up and into the atmosphere through an exhaust stack. Optionally, we can customize to meet your requirements.

Our booths comply with NFPA-33, the top-level safety code in the USA for spray application of flammable or combustible materials. This model has also been tested and certified as an ETL-Certified Booth by Intertek/ETL (Edison Testing Labs), an OSHA (Occupational Safety & Health Administration) recognized NRTL (Nationally Recognized Testing Laboratory). This certification is mandatory by many local authorities for safe operation and compliance. The stock model† of this booth comes with the certification included with the booth price.

  • 14' W x 9' H x 26'5" L  interior dimensions
  • 14'3" W x 9'1.5" H x 26'8" L exterior dimensions
  • 10' W x 9' H entrance doors
  • 34" tube axial fan with 3-phase - 3 hp motor - 15,260 CFM
  • Belt guard is included to prevent accidental contact with belts and pulleys by fingers or other objects
  • Air tight 18 gauge galvanized steel construction
  • 10-48" 4 tube fluorescent light fixtures with clear tempered glass
  • Draft gauge
  • Personnel door with clear tempered glass
  • Intake/exhaust filters/filter grids - 20" x 20"
  • All hardware, fasteners, sealants
  • Assembles in 2-3 days
  • We can customize to meet your requirements
  • UL listed components
The ETL paint booth package with this model includes:
  • An ETL-listed electrical control panel (Controls your lights and fan)
  • An air valve solenoid to interlock the fan motor and spray equipment
  • ETL label on the booth with the certification information for your local authorities
**Price includes crating
†The ETL certification is valid for this specific size and model. Customization to this booth may cause the booth to be uncertifiable. Check with your sales agent for more information.
